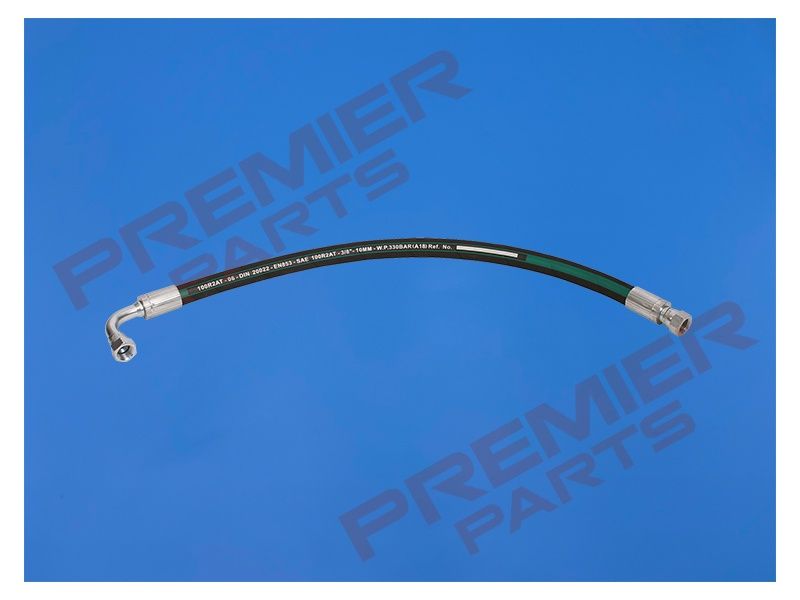

1/4" BSP 1 x 90 1 x Straight Female x 15.7mm OD x 1/4" ID Hydraulic Hose Assembly.
SKU PG-HOSE-ASSY-2SN-14-90-300
£11.00
Pre-order
Length
Please choose
Out of stock, available for pre-order
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
1/4" BSP 1 x 90 1 x Straight Female x 15.7mm OD x 1/4" ID Hydraulic Hose Assembly.
Product Details
Brand: PREMIER PRODUCTS
1/4" BSP Female x 15.7mm OD x 1/4" ID Hydraulic Hose Assembly
1/4" BSP Parallel Female x 15.7mm Outside Diameter x 1/4" Inside Diameter, Hydraulic Hose Assembly, Two Wire Braid EN853-2, 90° Swivel Female x Straight Swivel Female, Straight Hose End A x 90° Elbow Hose End B, 100mm Bend Radius, 600mm Length, Burst Pressure 1600 bar, Maximum Working Pressure 400 bar
Construction: Symthetic rubber black tube, oil resistant: two high tensile steel wire braids reinforcement separated by sythentic rubber layer: sythetic rubber black outer coverr, oil, fuel, weather, ozone and abrasion resistant. Application: high pressure servie with petroleum bas hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, hot oil, grease, lubricants, crude and fuel oils, air and water. For air and gas application above 17 bar (250psi) the cover should be pin-pricked. MHSA accepted cover on request. A high quality range of flexible hydraulic assemblies with compact end fittings in BSPP 60° Cone and JIC 37° cone termination. Each assmebly is manufactured from hydrualic hose manufactured to DIN 20022 with two peice fittings. Couplings: permanent crimp-on.
