Automatic Battery Charger - 24V 10A

Automatic Battery Charger - 24V 10A

24 volt 10 amp, input 100 - 240 vac 50 - 60Hz. , including sealed for life, gel and maintenance free. Features: micro chip controlled three stage charging, allowing the charger to be left permanently connected without harming the battery. On/off switch, detachable wall-mount brackets, supplied with crocodile clips and leads.

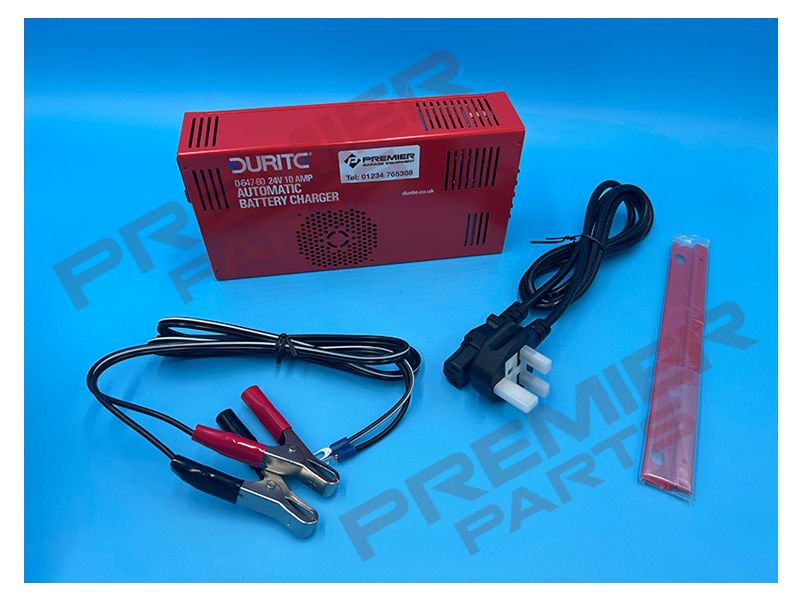

Durite 0-647-60 Automatic Battery Charger/Maintainer 24 volt 10 amp

24 volt 10 amp battery charger suitable for all sealed for life, gel and maintenance free batteries

Features: micro chip controlled three stage charging, allowing the charger to be left permanently connected without harming the battery.

• On/off switch,

• detachable wall-mount brackets,

• supplied with crocodile clips and leads.

Specification + Parts

• Type Automatic charger for lead-acid batteries

• Charge control 3 stage charging (Main 10 amp, Final 29.4 volt, Float 27.6 volt)

• Input 100 - 240 volt ac 50/60 Hz

• Output 10 amp 24 volt dc

• Battery type 24 volt wet cell, Lead/calcium, Maintenance Free, Sealed, Deep cycle, AGM and GEL

• Battery size Up to 300Ah

• Display 4 single LED indicators (Power on, Main, Final and Float Charge)

• Lead length Charging lead 1.2m, mains lead 1.5m

• Electrical protection Reverse connection and short circuit Protection

• Indoor use only

• Temperature range 0C to 40C

• Weight 1.45Kg

• Dimensions l 112 x w 226 x h 52mm (exc. bracket or feet)

• Compliance CE, RoHS, WEEE

DATA SHEET
