DuoPower 5x25mm Wall Plugs 100 Pack
Share
SKU FIS-535452
£2.50
In stock: 10 available
1
Have questions?
DuoPower 5x25mm Wall Plugs 100 Pack
Share
Product Details
Brand: FISCHER
EAN: 4048962239829

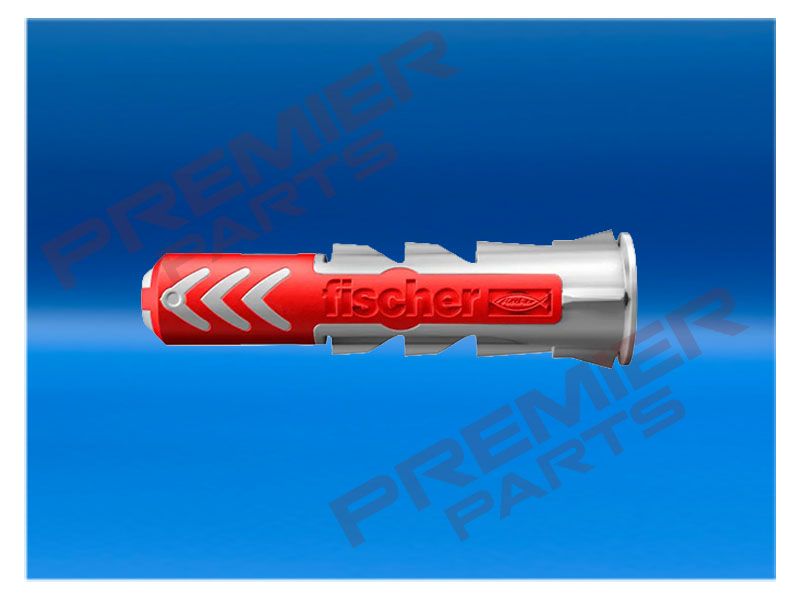

DuoPower 5x25mm Wall Plugs 100 Pack
- Combination of two material components for more performance.
- Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting).
- Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole.
- Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly.
Advantages
- Two component materials for top load values and intelligent functioning depending on the substrate.
- Great feedback (feel-good factor) of the plug. You can feel exactly, when the plug is installed perfectly.
- The narrow plug rim prevents slipping into the drill hole.
- The serrated anti-rotation feature prevents rotation in the drill hole during installation.
- The greater anchorage depth of the DuoPower 6 x 50, 8 x 65 and 10 x 80 means that the plug is especially suited to fixings in hollow building materials, aerated concrete and to bridge plaster.
The fischer DuoPower offers very good hold values as a result of its 2 components: Depending on the building material, the grey components made from high quality nylon automatically activates the optimum product function (expansion, folding, knotting) for the best hold. The expansion wings of the red component support the secure expansion and offer additional security to the grey component. Easy screwing-in of the screw and correct "tightening" to close. No over-tightening of the screw. The preshaped edge on the plug head prevents the plug from slipping into the drill hole.
Applications
- Wall cabinets
- Shelves
- Mirror cabinets
- Tool walls
- Heavy mirrors
- Wardrobes
- Wash basin fixings
- Plumbing and heating fixings
- Bath and toilet installations
Building materials
- Concrete
- Solid brick
- Solid sand-lime brick
- Aerated concrete
- Vertically perforated brick
- Perforated sand-lime brick
- Plasterboard
- Hollow blocks made from lightweight concrete
- Cavity floor slabs made from bricks and concrete or similar
- Natural stone
- Solid brick made from lightweight concrete
Functionality
- The DuoPower is suitable for pre-positioned and push-through installation.
- The red expansion wings support the safe expansion and offer additional safety for the grey component.
- The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads.
- The required screw length is given by the plug length + fixture thickness + 1 x the screw diameter.
- Suitable for wood and chipboard screws, as well as stud screws.
- In the case of fixing boards, the threadless part of the screw must not be longer than the fixture.
|
Drill diameter(d0)
|
5 mm |
|---|---|
|
Min. drill hole depth(h1)
|
35 mm |
|
Min. panel thickness(dp)
|
12,5 mm |
|
Anchor length(l)
|
25 mm |
|
Min. bolt penetration(lE,min)
|
29 mm |
|
Wood and chipboard screws(ds)
|
3.0 - 4.0 mm |
|
Max. load in concrete
|
40 kg |
|
Max. load in solid brick
|
30 kg |
|
Max. load in vertically perforated brick
|
13 kg |
|
Max. load in aerated concrete
|
5 kg |
|
Max. load in gypsum plasterboard 12.5 mm
|
12 kg |
