M8X12 GRUB SCREW DOG HEAD
SKU M8X12-GRUB-DOGHEAD
£2.50
In stock: 4 available
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
M8X12 GRUB SCREW DOG HEAD
Product Details
Brand: MISCELLANEOUS PARTS

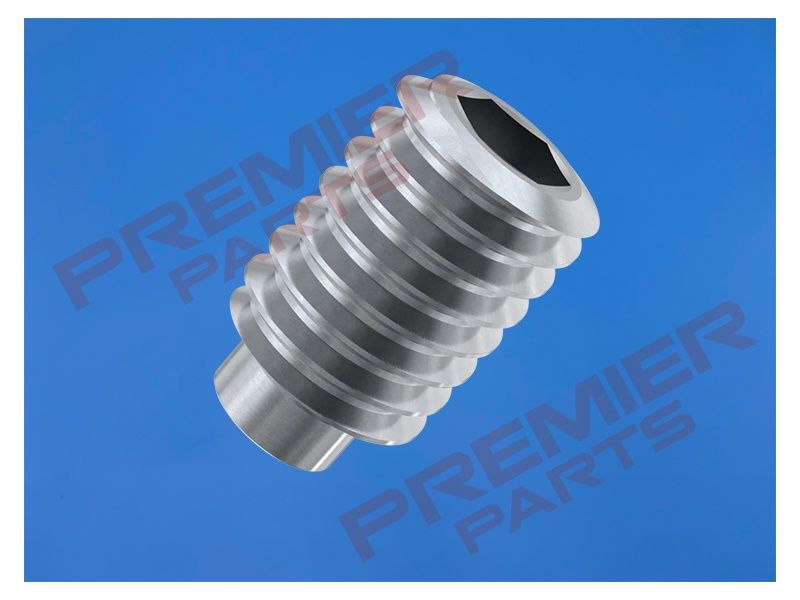

M8 x 12mm Grub Screw Dog Point in A2 Stainless
Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a square profiled end called a dog point on the opposite end, as to ISO 4028 or DIN 915.
| Technical Summary | |||
| d | nominal diameter | M8 | |
| thread pitch | thread pitch | 1.25 | |
| dp | dog diameter | 5.20 | |
| t min. | minimum recess depth | 3.0 | |
| t max. | maximum recess depth | 5.0 | |
| s | drive size | 4 | |
| e | width across corners | 4.6 | |
| Standard | ISO 4028 (DIN 915) | ||
| Material | A2 Stainless Stee | ||
| Technical Summary | |||
| d | nominal diameter | M8 | |
| thread pitch | thread pitch | 1.25 | |
| dp | dog diameter | 5.20 | |
| t min. | minimum recess depth | 3.0 | |
| t max. | maximum recess depth | 5.0 | |
| s | drive size | 4 | |
| e | width across corners | 4.6 | |
| Standard | ISO 4028 (DIN 915) | ||
| Material | A2 Stainless Steel | ||
