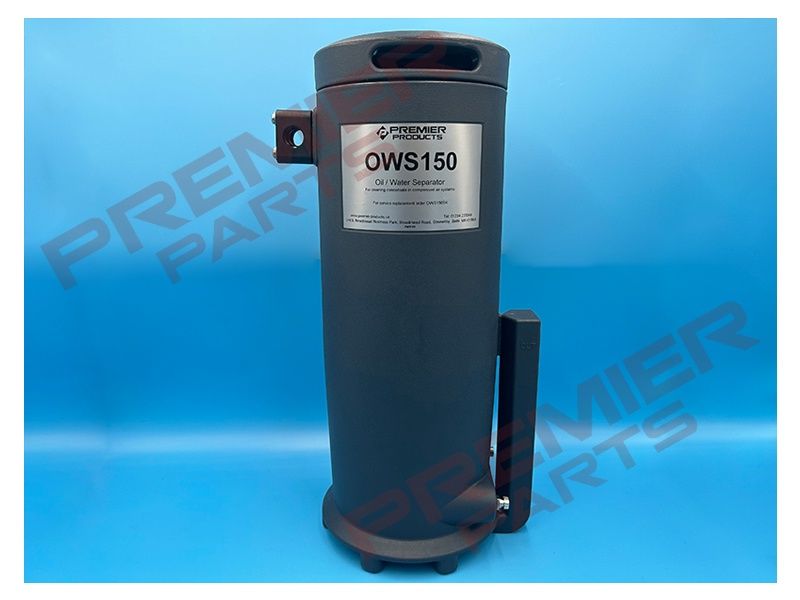

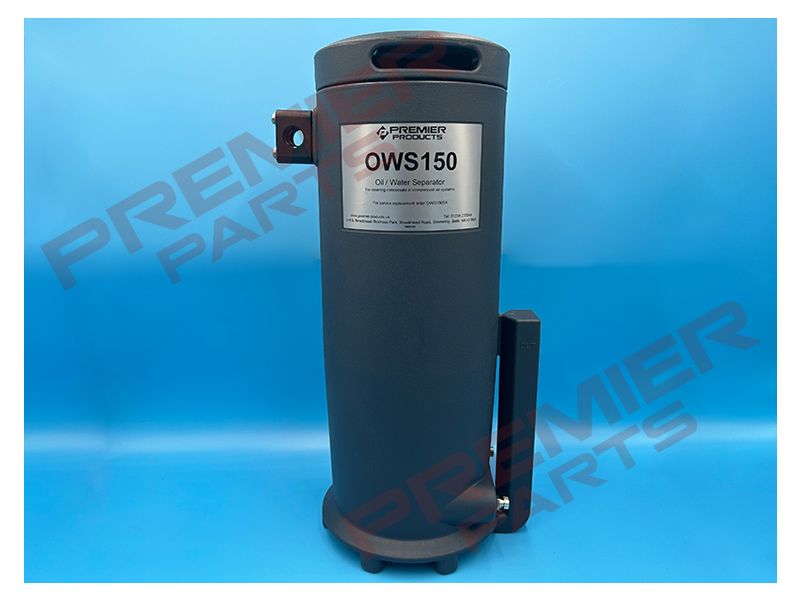

OWS150 OIL WATER SEPARATOR

OWS150 OIL WATER SEPARATOR

Simple and effective
The physical properties of most compressor lubricants allow a highly economical condensate separation. OWS150 oil-water separators remove oil components from these oil-water mixtures quickly and reliably.    The discharge water can be safely introduced to sewer systems. OWS150 separators can treat mineral oils and synthetic lubricants.
The OWS150 design allows a universal usage for all types of condensate.

 Effective condensate separation
+ no activated carbon used
▸ weight reduction of service kits
+ simple installation and service
+ low footprint, compact design
+ four different sizes up to 1,000 cfm compressor capacity
+ for float type, time-controlled and zero-loss condensate
drains

• CFM: 150
• M3/min: (4.2)
• Max service life (hrs): 4000

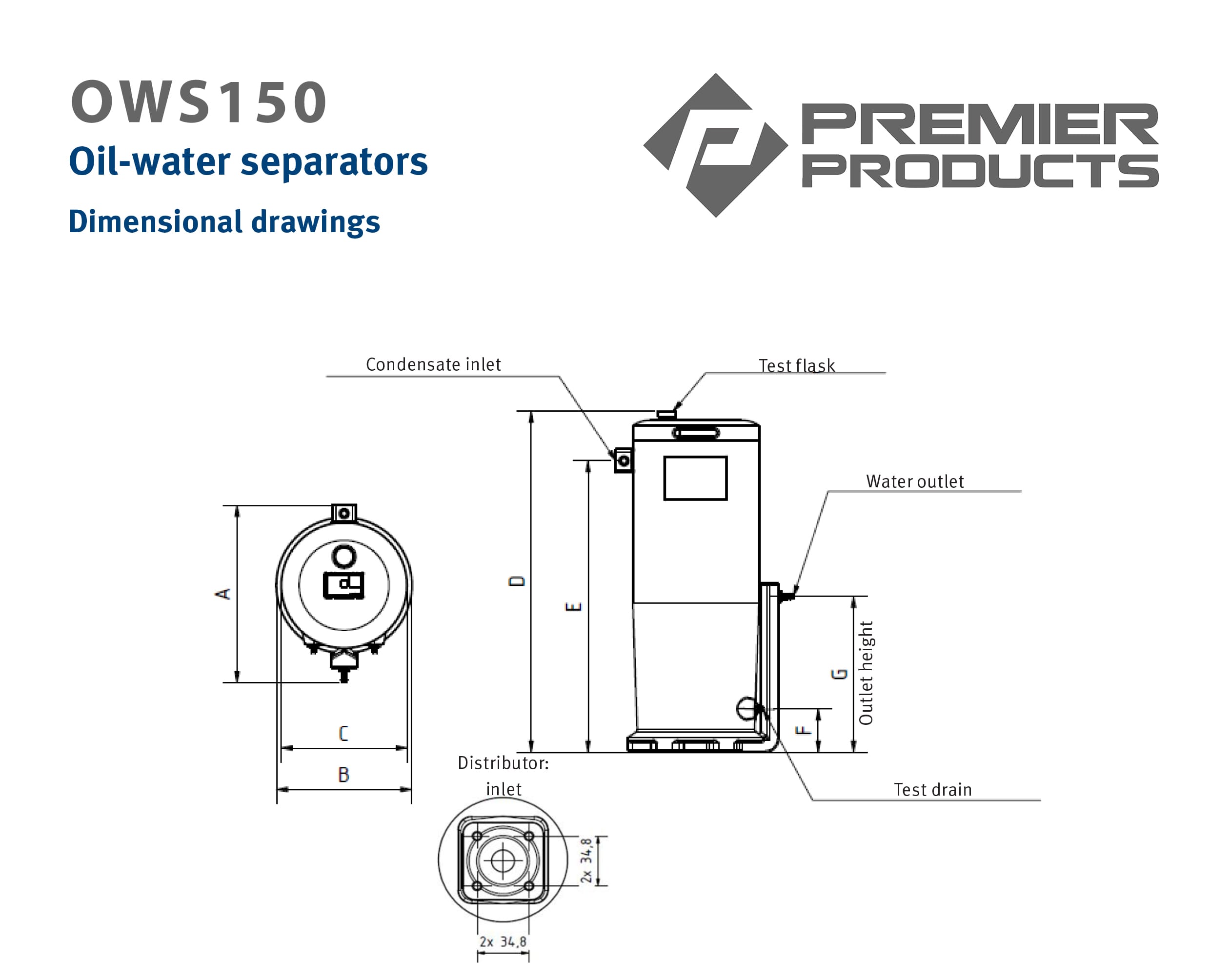

• Dimensions: Height: 560mm, Width: 220mm, Depth 255mm
• Height to outlet c/l (mm): 240
• Weight 3.4kg

For Replacement Filter see OWS150SK

DATA SHEET
