ST6 FRIDGE DRYER C/W FILTER PACK (22CFM)

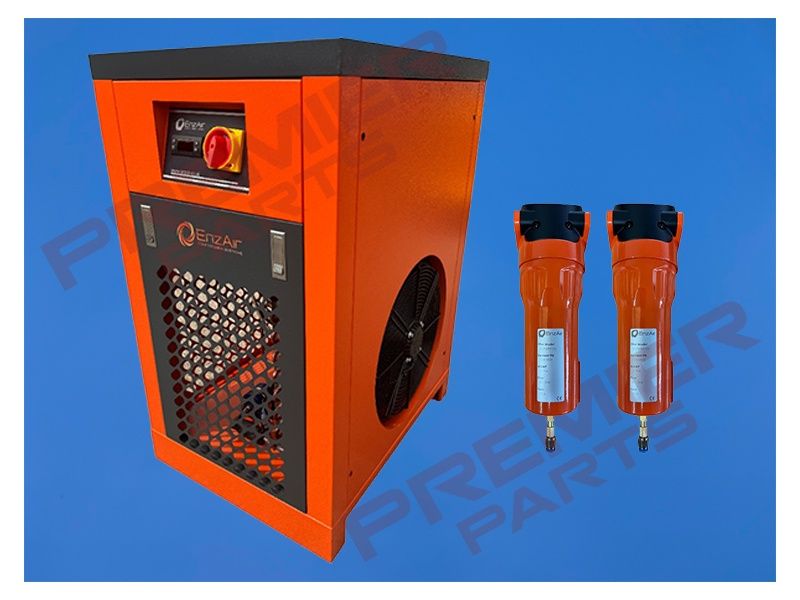

EnzAir ST 6 Refrigeration Dryer and Enzair UCP7 In Line Filter Package 22 CFM

ST6 FRIDGE DRYER C/W FILTER PACK 22CFM FRIDGE DRER C/W UCP7 FILTERS

Premium Efficiency & Reliability for Your Dry Air.

Designed for an easy plug and play operation the EnzAir ST series dryers are our premium dryer solution to achieve continious dry air for your system.

All ST dryers come fitted as standard with a digital display showing the PDP of your air and diagnostics codes helping to identify issues early and helpsto ensure production keeps running at its optimal efficiency. This reduces additional cost in the long run of equipment breaking down through corrosion and blockages caused by untreated air.

The EnzAir ST dryer renge offers  a pressure dew point of 3°C and is able to operate in ambient temperatures as high as 40°C, giving it an achievable rating of class 4 in accordance with ISO 8573-1.

Key Features at a Glance:

• Compact Design
• Low power consumption
• Prewired for plug & play operation, just connect your pipe IN and pipe OUT
• Adjustable automatic condensate drain
• Digital display showing real time insights with built in safety devices
• Reliable & Environmentally Friendly R134A Refrigerant

EnzAir innovation UCP inline compressed air filter range helps you protect your compressed air system against unwanted contaminants downstream protecting your critical and valuable equipment ensuring high performance and efficiency without compromise. All our filters are tested using leak detection equipment to ensure each filter meets a high standard.

Each product is tested in line with ISO8573-1:2010

• Filters can be joined in line using the quick installation fixings
• Painted internally to prevent corrosion and contamination
• Fully automatic drain valve with manual test
• Colour coded elemnts for ease of maintenance
• Heavy duty cast filters with stop guide for the bowl to housing
• Maximum working pressure of 16 Bar
• Wall mounting kits available

There are many factors to consider when sizing dryers and filtration, if you are unsure please contact us first to make sure you are properly sized and spec'd.

• Air Flow - 22 CFM @ 7 Bar / 25 CFM @ 10 Bar
• BSP Connection - 1/2"
• Max Pressure - 16 Bar
• Power Supply - 230/1/50
• Refrigerant - R134A
• L x W x H (mm) - 440 x 380 x 630

~ Special Delivery Item, Free Shipping not Included, Charge for this item will be added at Checkout
