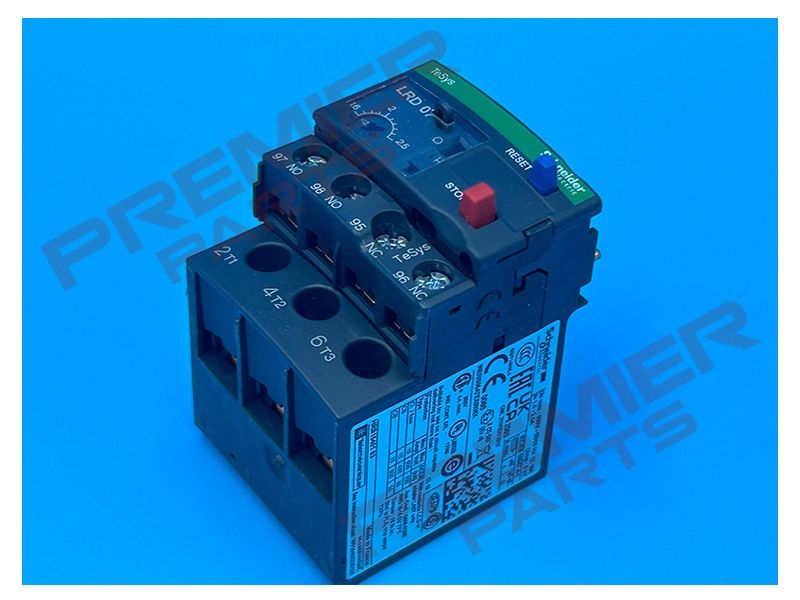

THERMAL OVERLOAD RELAY - 1.6...2.5 A - CLASS 10A
SKU 18207
£40.00
Pre-order
Out of stock, available for pre-order
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
THERMAL OVERLOAD RELAY - 1.6...2.5 A - CLASS 10A
Product Details
Brand: SCHNEIDER
THERMAL OVERLOAD RELAY - 1.6...2.5 A - CLASS 10A
Schneider Electric LRD Overload Relay 1NO + 1NC, 1.6 → 2.5 A F.L.C, 2.5 A Contact Rating, 3P, TeSys
This overload relay is an essential component for motor protection, designed to ensure safe operation within specified parameters. The TeSys LRD type is compatible with multiple contactors, offering robust electrical overload protection. It features a direct mounting style and comes equipped with screw terminals for easy installation. With dimensions of 66mm in height, 45mm in width, and 70mm in depth, this device operates effectively across a temperature range of -20 to +60 °C.
Features & Benefits
• Supports a thermal overload adjustment range of 1.6 to 2.5 A
• Provides automatic and manual reset methods for reliable operation
• Comprises 1NO + 1NC auxiliary contacts for versatile configuration
• Rated insulation voltage of 690V ensures compliance with standards
• Rugged design withstands shocks and vibrations for durability
• IP20 protection rating safeguards against foreign materials
• Provides automatic and manual reset methods for reliable operation
• Comprises 1NO + 1NC auxiliary contacts for versatile configuration
• Rated insulation voltage of 690V ensures compliance with standards
• Rugged design withstands shocks and vibrations for durability
• IP20 protection rating safeguards against foreign materials
Applications
• Utilised for motor protection in various industrial setups
• Compatible with multiple types of contactors to enhance functionality
• Designed for use in DC and AC networks for diverse
• Suitable for environments with stringent temperature requirements
• Compatible with multiple types of contactors to enhance functionality
• Designed for use in DC and AC networks for diverse
• Suitable for environments with stringent temperature requirements
What is the tripping threshold for this device?
The tripping threshold is set at 1.14 +/- 0.06 of the rated current, ensuring reliable operation within defined parameters.
How does the relay handle phase failure sensitivity?
It is designed to trip when the current reaches 130% of the rated current on two phases, providing added safety during operation.
What types of networks is this relay compatible with?
This device supports both DC and AC networks, making it versatile for a range of applications.
What is the maximum current rating of the auxiliary contacts?
The auxiliary contacts allow for a maximum current of 3 A at 120V AC for signalling purposes, enhancing its utility in control circuits.
How can it be mounted?
The overload relay can be mounted on a plate or rail, with specific accessories required for installation.
