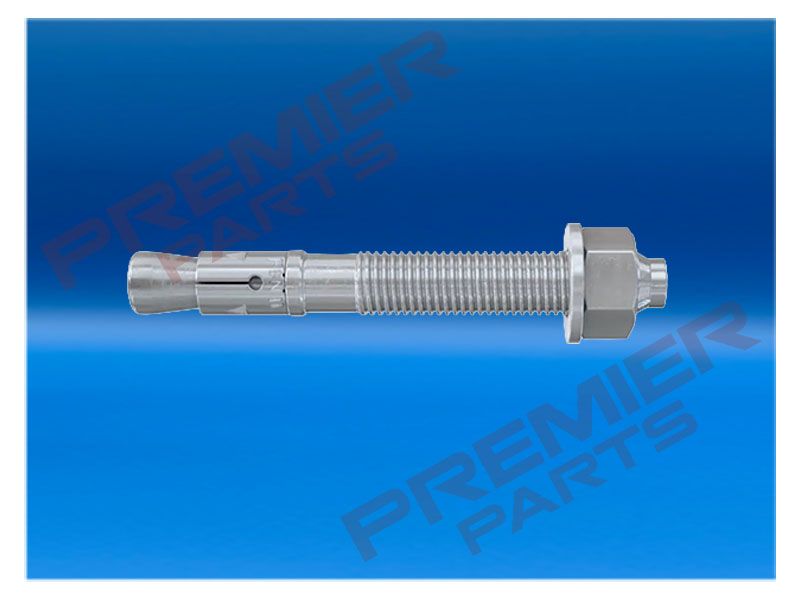

Through Bolt 10X125/50/60 Zinc Plated (SOLD EACH)
Share
SKU FIS-40855
£0.85
In stock: 20 available
1
Have questions?
Through Bolt 10X125/50/60 Zinc Plated (SOLD EACH)
Share
Product Details
Brand: FISCHER
EAN: 4006209408551
Through Bolt 10X125/50/60 Zinc Plated (SOLD EACH)
- The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
- If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
- Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations. This increases flexibility.
- Simple assembly due to few taps and minimal slippage.
|
Drill diameter(d0)
|
10 mm |
|---|---|
|
Min. drill hole depth for through fixings(h2)
|
118 mm |
|
Anchor length(l)
|
123 mm |
|
Max. usable length hef,stand./hef,min.(tfix)
|
50 / 60 mm |
|
Thread(ø x length)
|
M10 x 86 mm |
|
Width across nut 17mm
|
Advantages
- The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
- The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
- The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
- Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
- The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.
The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.
Applications
- Steel constructions
- Guard rails
- Consoles
- Ladders
- Machines
- Gates
- Façades
Building materials
Approved for:
- Concrete C20/25 to C50/60, non-cracked
- Concrete C12/15
- Natural stone with dense structure
Approvals
- ETA-07/0211
- DoP No. 0192
Functionality
- The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
- Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
- When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
- The head embossing offers a simple control of the anchoring.
- In the case of series installation, we recommend using the FABS bolt anchor setting tool.
